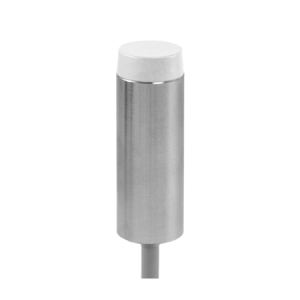

Inductive proximity switch IFBR 17P13T1/L-9

Technical data

general data

mounting type

• non-flush

special type

• hygienic design

nominal sensing distance Sn

• 12 mm

hysteresis

• 2 … 15 % of Sr

output indicator

• LED red

approvals/certificates

• Ecolab
• EHEDG
• REGULATION (EC) 1935/2004
• REGULATION (EC) 2023/2006
• REGULATION (EU) 1282/2011
• FDA 21 CFR § 175.300
• FDA 21 CFR § 177.2600
• FCN 742

electrical data

switching frequency

• < 500 Hz

voltage supply range +Vs

• 10 … 30 VDC

current consumption max. (no load)

• 10 mA

output circuit

• PNP make function (NO)

voltage drop Vd

• < 2 VDC

output current

• < 200 mA

output current (at cleaning temperature)

• < 100 mA

short circuit protection

• yes

reverse polarity protection

• yes

mechanical data

type

• cylindrical smooth

material (sensing face)

• LCP

housing material

• stainless steel 1.4404 (V4A); LSR

dimension

• 17 mm

housing length

• 55 mm

connection types

• cable PVC, 2 m

ambient conditions

operating temperature

• -40 … +80 °C

cleaning temperature

• 80 … +100 °C (30 min/day)

protection class

• IP 68/69K & proTect+
